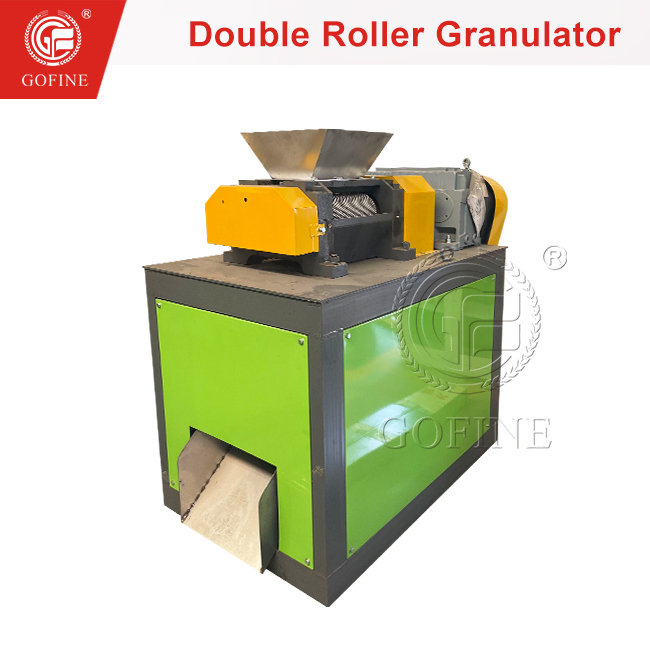

NPK/Fertilizer Granulation Equipment: Double Roller Extrusion Granulator

Name: NPK/Fertilizer Granulation Equipment: Double Roller Extrusion Granulator
Brand: Zhengzhou Gofine Machine Equipment CO., LTD
SKU: GF-I-1.0
Price: 1,400.00 USD
Availability: InStock

Productgegevens

Plaats van herkomst: China

Merknaam: Gofine

Certificering: CE

Modelnummer: GF-I-1.0

Betaling en verzendvoorwaarden

Min. bestelaantal: 1 set

Prijs: $2800-4600/1set

Verpakking Details: multiplex kast

Levertijd: 1-3 sets/15 dagen

Betalingscondities: L/C, T/T, Western Union, MoneyGram

Levering vermogen: 25 sets/maand

Krijg Beste Prijs

Productgegevens

Productbeschrijving

Productgegevens

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                1.5-2t/h Capacity Double Roller Extrusion Granulator, 2-8mm Particle Size Dry Granulation Machine, Room Temperature Granulation Roll Press Compactor


Capaciteit:	1.5-2t/h	Granulatietemperatuur:	Kamertemperatuur
Proces:	Droge granulatie	Deeltjesgrootte:	2-8 mm
Grondstof:	Organische meststoffen, samengestelde meststoffen, chemische producten, grafiet, kattenbakvulling, e	Granulatiepercentage:	≥95%
Applicatie:	Granulatieverwerking	Functies:	Geen droging nodig, laag energieverbruik
Materiaal:	Koolstofstaal/roestvrij staal	Gietvorm:	Regelmatige/onregelmatige korrels
Aanpassingsvermogen:	Meerdere granulatoren kunnen flexibel worden gecombineerd tot granulatie-eenheden.	Energie:	Elektriciteit

Capaciteit:	1.5-2t/h
Granulatietemperatuur:	Kamertemperatuur
Proces:	Droge granulatie
Deeltjesgrootte:	2-8 mm
Grondstof:	Organische meststoffen, samengestelde meststoffen, chemische producten, grafiet, kattenbakvulling, e
Granulatiepercentage:	≥95%
Applicatie:	Granulatieverwerking
Functies:	Geen droging nodig, laag energieverbruik
Materiaal:	Koolstofstaal/roestvrij staal
Gietvorm:	Regelmatige/onregelmatige korrels
Aanpassingsvermogen:	Meerdere granulatoren kunnen flexibel worden gecombineerd tot granulatie-eenheden.
Energie:	Elektriciteit

Productbeschrijving

NPK/Fertilizer Granulation Equipment: Double Roller Extrusion Granulator

Overview

The Double Roller Extrusion Granulator, also known as a Dry Granulation Machine or Roll Press Compactor, is an advanced industrial equipment designed for transforming fine powders into dense, uniform granules without the need for liquid binders. This machine utilizes the principle of Roll Press Compaction, where two synchronized, counter-rotating rollers apply extreme mechanical pressure to the raw material, forcing it through precisely designed molds (roll surfaces). The resulting product is sheet-like material that is then broken down and screened into uniform granules.

This Granulation Equipment is widely recognized for its efficiency in Material Densification, making it a preferred choice in industries such as fertilizer production, chemical processing, and mineral agglomeration. It is a cornerstone of modern Continuous Granulation Processes, offering a clean, economical, and scalable solution for Powder to Granules conversion.

Key Features

Dry Granulation Process: Produces granules without adding moisture or liquid binders, eliminating the need for subsequent drying steps.
High Pressure Roller Compaction: Equipped with robust rollers and powerful hydraulic/spring-pressure system for hard, low-moisture granules.
Excellent Material Densification: Increases bulk density of raw materials, improving storage and transportation efficiency.
Continuous and Automated Operation: Designed for seamless integration into continuous production lines with high throughput.
Versatility and Adaptability: Processes wide range of materials including fertilizers, chemicals, and minerals with customizable granule size/shape.
Environmentally Friendly: Closed system minimizes dust pollution; dry process avoids wastewater generation.
Low Maintenance and Robust Construction: High-wear-resistant materials ensure long service life and reduced downtime.

Applications

The Double Roller Extrusion Granulator is a versatile machine with extensive applications across multiple industries:

Fertilizer Granulation: Producing high-quality compound fertilizers, NPK fertilizers, and blended fertilizers.
Chemical Granulation: Processing pigments, dyes, resins, pesticides, and insecticides.
Mineral and Metal Industry: Agglomerating metal powders, coal fines, carbon black, and various ores.
Pharmaceutical and Food Industry: Dry granulation for powder formulations where required.
Other Industries: Ceramics, refractories, and recycling industrial by-products.

Working Process

The working process of the Double Roller Extrusion Granulator is a continuous mechanical cycle:

Feeding: Raw powder material is fed uniformly into the granulator's hopper.
Compaction Zone: Material enters the gap between two counter-rotating rollers.
High-Pressure Extrusion: Rollers exert extreme pressure, compacting material into solid sheet.
Formation of Sheet/Ribbon: Compacted material exits as thin, dense sheet with specific patterns.
Crushing and Sizing: Sheet is broken down into fragments and screened for uniform granules.
Recycling: Fines and oversized particles are recycled back to feeding system.
Final Product Output: Uniformly sized granules are discharged as final product.

The two-roll extrusion granulator efficiently produces high-quality granules without binders, balancing production efficiency, cost-effectiveness, and environmental sustainability. For better granule quality, it can be used with a spheroidizing machine for spherical shaping and polishing, or integrated into a complete automated granulation production line.

Product Details

Complete double-roll extrusion granulation production line

About Us

As a leading agricultural equipment supplier with extensive export experience, Gaofen Machinery offers:

Comprehensive range of high-efficiency agricultural machinery
Expert technical support and consultation
Professional installation & commissioning services
Comprehensive training programs
Reliable after-sales service and maintenance
Customized solutions for specific requirements

Through these integrated services, Gaofen Machinery is committed to delivering high-quality fertilizer production equipment and end-to-end support.

Contact us today to explore partnership opportunities and discover how our innovative agricultural machinery and solutions can drive your success.
